Περιγραφή

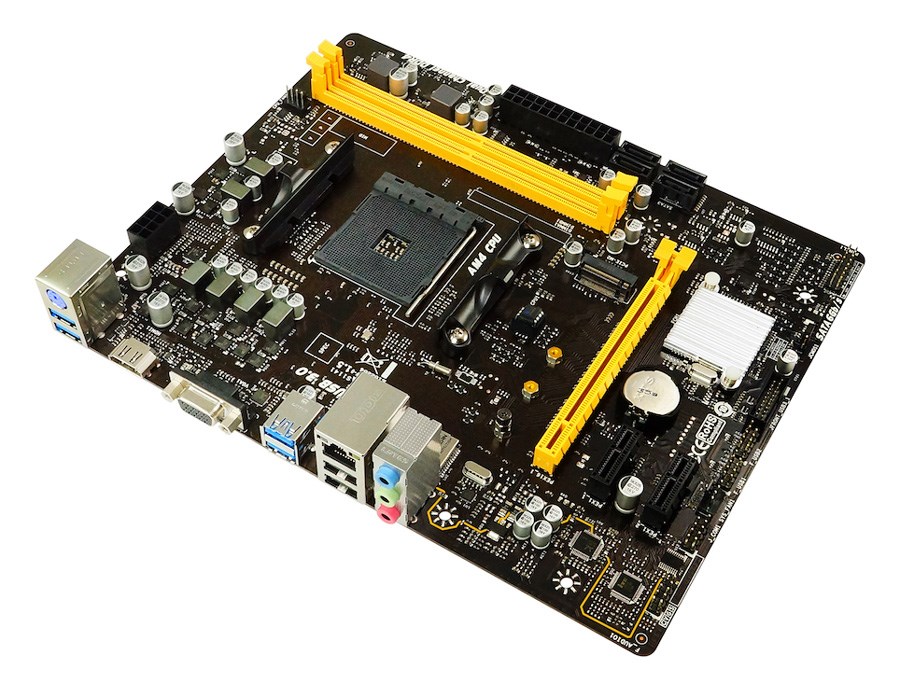

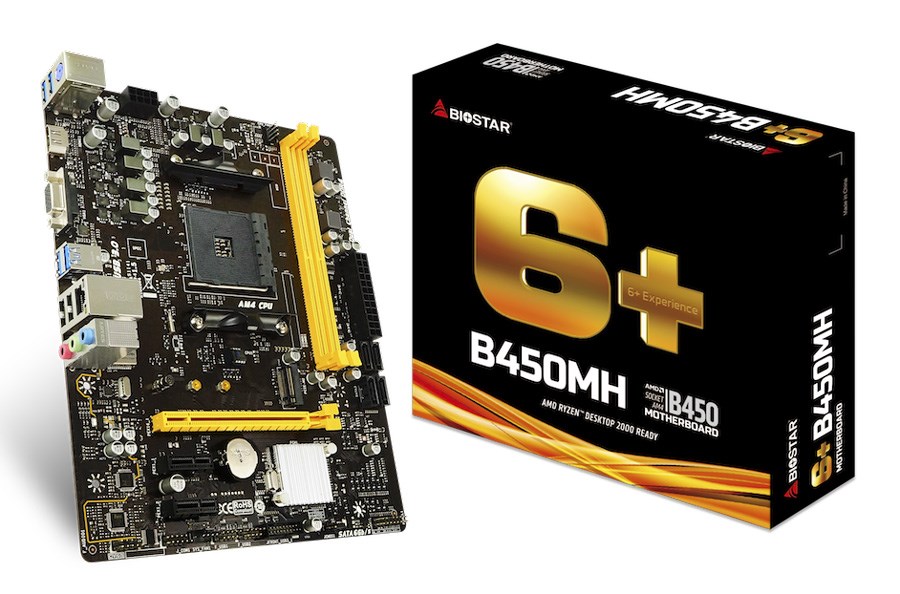

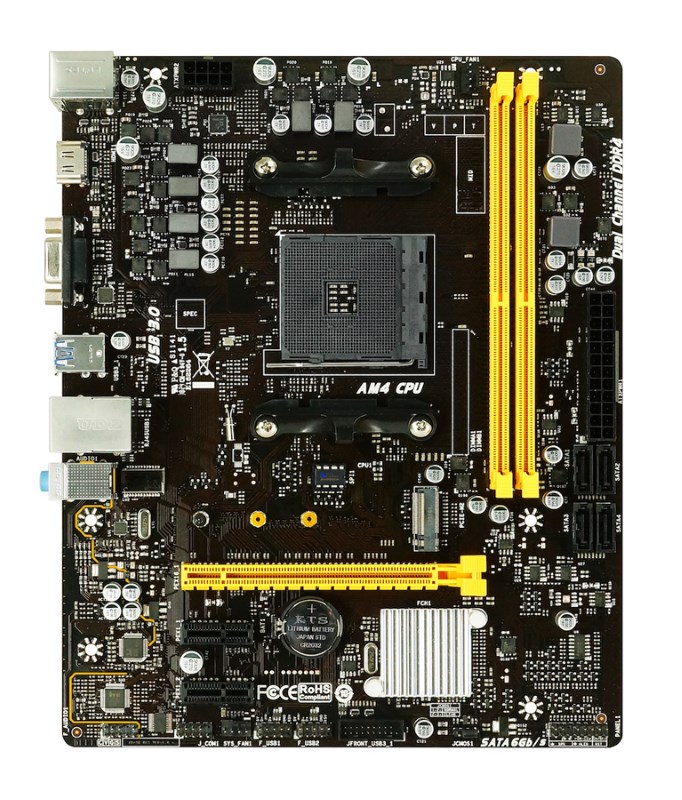

BIOSTAR Μητρικη B450MH, 2x DDR4, AM4, USB 3.1, HDMI, mATX, Ver. 6.0

-Support AMD Ryzen CPU / APU
-AMD B450 single chip architecture
-Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666/ 2933/ 3200(OC)
-Support Realtek Gigabit LAN
-Support USB 3.1 Gen1
-Support M.2(32Gb/s)
-Support HDMI, VGA Ports

Τεχνικα Χαρακτηριστικα
Chipset: AMD B450
CPU SUPPORT: AMD A-series APU / Ryzen CPU / NPU for Socket AM4
Memory: 2x DDR4, Support Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200(OC) MHz, Max. Supports up to 32GB Memory
Storage: 4x SATA3 Connectors (6Gb/s)
Supports AHCI & RAID 0, 1, 10, 1 x M.2 Key M 32Gb/s Connector:
LAN: Realtek RTL8111H – 10/100/1000Mb/s Controller, Support Super LAN Surge Protection
CODEC: Realtek ALC887 7.1-Channel Audio
USB: 6x USB 3.1 Gen1 Ports (5Gb/s) (4 on rear I/Os and 2 via internal headers), 6x USB 2.0 Port(2 on rear I/Os and 4 via internal headers)
Expansion slot: 1x PCI-E 3.0 x16 Slot, 2x PCI-E 2.0 x1 Slots
Rear I/O
1x PS/2 Keyboard/Mouse
4x USB 3.1 Gen1 (5Gb/s) Ports
2x USB 2.0 Ports
1x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4
1x VGA Port ,resolution up to 1920 x 1200 @60Hz
1x LAN port
3x Audio Jacks
Internal I/O:
1x USB 3.1 Gen1 Header(5Gb/s) (each header supports 2 USB 3.1 Gen1 ports)
2x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
4x SATA3 6Gb/s Connectors
1x Front Audio Header
1x Front Panel Header
1x CPU Fan Connector
1x System Fan Connector
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x Clear CMOS Header
1x COM Port Header
Dimension: Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L )
OS Support: Windows 10(64bit), Windows 7(64bit) for Bristol Ridge/ Summit Ridge/ Pinnacle Ridge only7(64bit) / 10(64bit)
Accessories:
2x SATA Cable
1x I/O Shield
1x DVD Driver
1x Quick Guide
