Περιγραφή

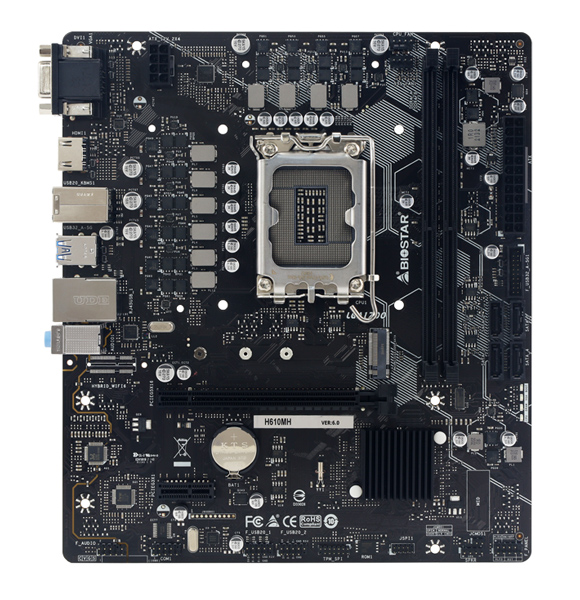

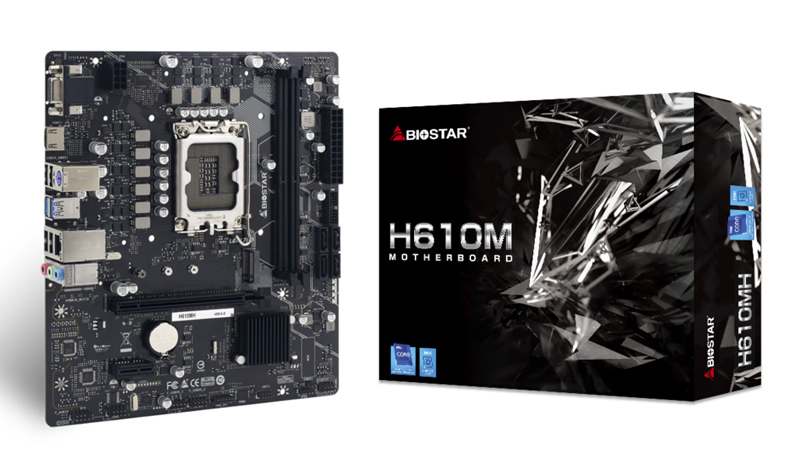

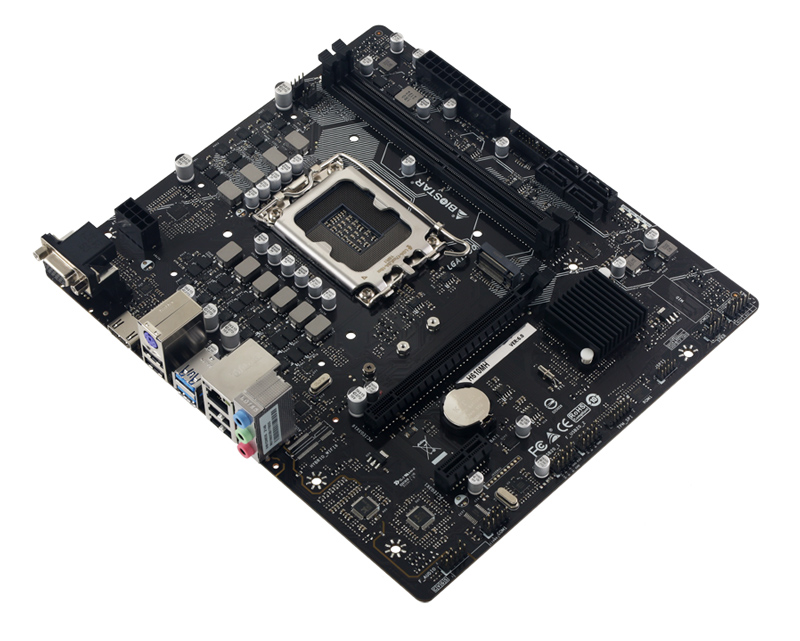

BIOSTAR μητρικη H610MH, 2x DDR4, s1700, USB 3.2, uATX, GbE, Ver. 6.0

Η H610MH της Biostar ειναι μια αξιοπιστη μητρικη καρτα, ιδανικη για χρηση τοσο σε home PC οσο και σε bussiness PC. Κατασκευαζεται απο αξιοπιστα components και εξοπλιζεται με ολες τις συγχρονες τεχνολογιες που προσφερουν αυξημενες ταχυτητες και σταθερη αποδοση. Υποστηριζει επεξεργαστες οι οποιοι ειναι συμβατοι με το socket s1700 και βασιζεται στο chipset H610 της Intel.
Διαθετει δυο εξοδους γραφικων: VGA και HDMI.

-Supports 12th Generation Intel Core™ Processor
-Intel H610 single chip architecture
-Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2933/ 3200 up to 64 GB Memory
-Supports PCIe 4.0
-Supports PCIe M.2 3.0 (32Gb/s)
-Supports HDMI 4K2K
-Supports USB 3.2 Gen1

Τεχνικα χαρακτηριστικα
CPU: Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors / Intel Celeron processors in the LGA1700 package
Chipset: Intel H610
Memory: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200, 2x DDR4 DIMM Memory Slot Max. Supports up to 64 GB Memory, Each DIMM supports non-ECC 4/8/16/32GB DDR4 module, Support Intel Extreme Memory Profile (XMP) memory modules
Integrated video: Supports DX12, Supports HDCP
Audio: ALC897, 7.1 Channels, High Definition Audio
LAN: Intel I219V, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Expansion slot: 1x PCIe 3.0 x1 Slot, 1x PCIe 4.0 x16 Slot
USB: 4x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers), 8x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
Storage: Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports, 4x SATA III Connector (6Gb/s), 1x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA): Supports M.2 Type 2240 /2260 /2280 SSD module, Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD
Form Factor: Micro ATX 20.8cm x 23.6cm

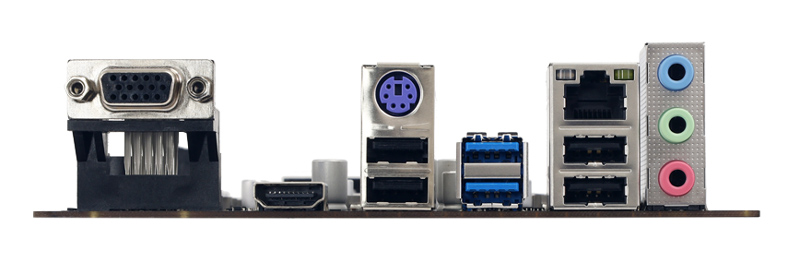

REAR I/O:
1x PS/2 Keyboard/Mouse Port
1x HDMI
1x VGA Port
2x USB 3.2 (Gen1) ports
4x USB 2.0 ports
1x LAN port
3x Audio Jack
INTERNAL I/O:
4x SATA III Connectors (6Gb/s)
2x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
1x TPM Header
H/W monitoring: CPU / System Temperature Monitoring, CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, CPU/DDR Voltage Monitoring
OS SUPPORT: Supports Windows 10 (64bit) / 11(64bit)
