Περιγραφή

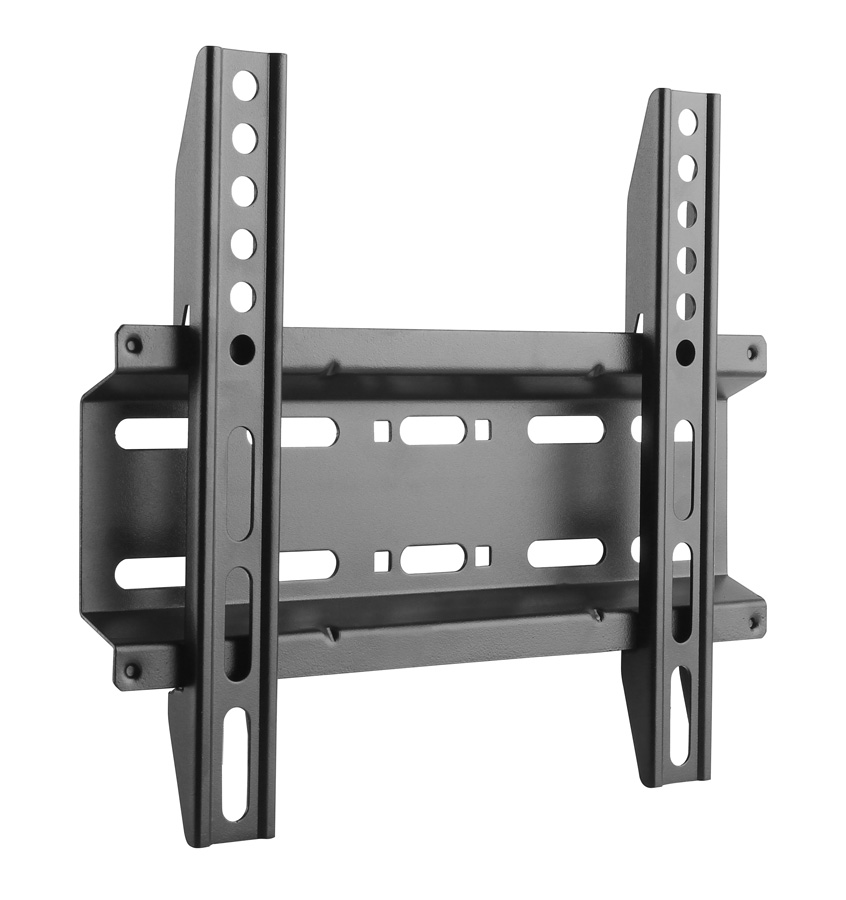

BRATECK επιτοιχια βαση KL25-22F, για οθονη 23-42", εως 35kg

KL25-22F wall mount is compatible with any 23"-42" flat panel TV and the load-bearing up to 35kgs. Super Slim design sits just 28mm from wall to complement the sleek look of ultra-thin TVs. Suited for VESA hole up to 200×200. It allows the TV to slide left and right on the wall plate so it’s positioned exactly where you want it. The power coating finish guarantees the durability and the simple construction is easy to install.

– Lateral shift brackets enable fast alignment
– Installation is as easy as 1-2-3
– Slim design provides low profile

Τεχνικα Χαρακτηριστικα:
Function: Fixed
By Mounting Pattern: Universal
Material: Steel
Pipe Size: No
Surface Finish: Powder Coating
Available Color: Black

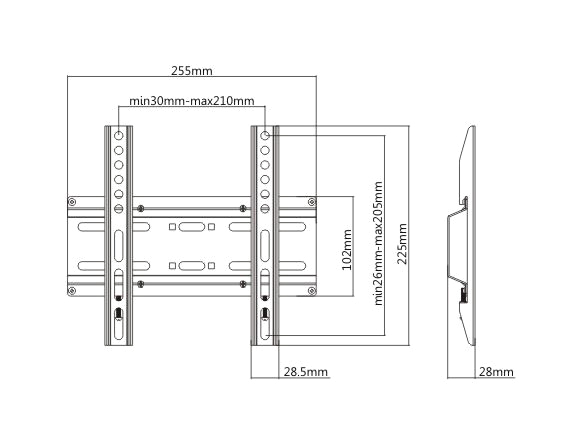

Product Size With Open Position: 28x255x225mm (1.1"x10"x8.9")
Fit Screen Size: 23"-42"
Installation: Solid wall
Rated Load: 35kg (77lbs)
Strength tested: 3 times approved
Max.Hole Pattern: 210x205mm
VESA: 75×75, 100×100, 200×100, 200×200
Profile: 28mm (1.1")

Περιεχομενα συσκευασιας:
βαση
βιδες
εργαλεια
user manual
