Περιγραφή

BRATECK επιτοιχια βαση KLA27-221, για οθονη 23-42", εως 30kg

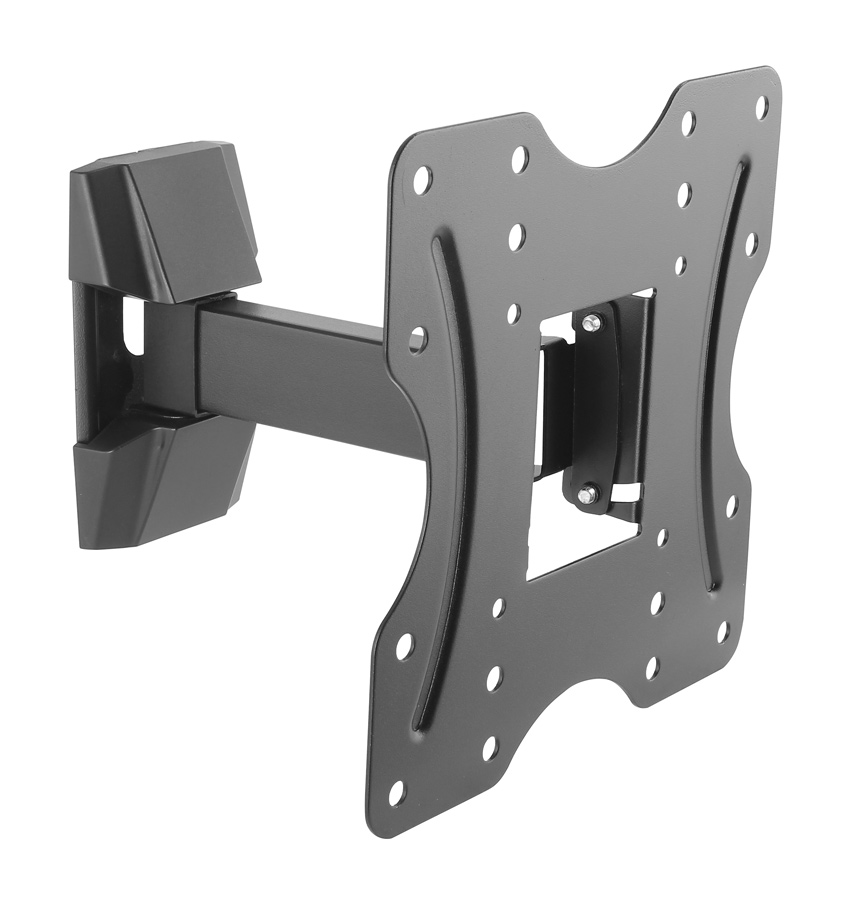

The KLA27-221 super economy full-motion mount accommodates most 23"-42" flat panel TVs up to 30kg/66lbs. Its lengthened arms extend out 190mm from wall and allows full-motion capabilities. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room.

– Easy-grip knobs for quick tilt and lock
– Swiveling arm(s) offer(s) maximum viewing flexibility
– Open architecutre provides increased ventilation and easier access to wires

Τεχνικα Χαρακτηριστικα:
Function: Full motion
By Mounting Pattern: Standard VESA
Material: Steel, Plastic
Pipe Size: 40x20mm (1.6"x0.79")
Surface Finish: Powder Coating
Available Color: Black

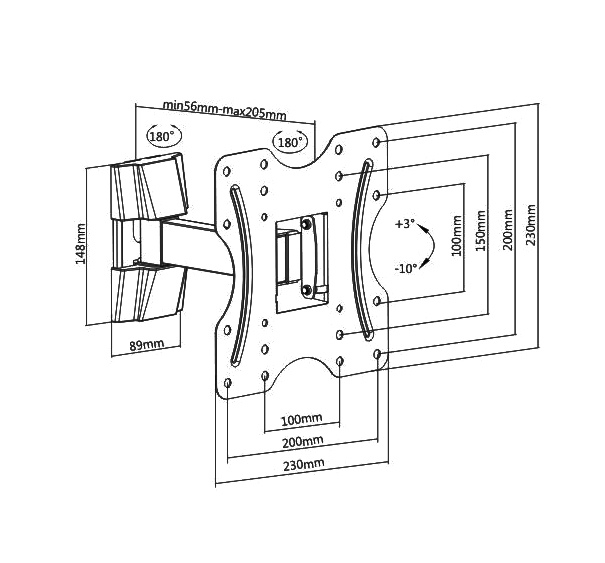

Product Size With Open Position: 205x230x255mm (8.1"x9.1"x10")
Fit Screen Size: 23"-42"
Installation: Solid wall
Rated Load: 30kg (66lbs)
Strength tested: 2 times approved
Max.Hole Pattern: 200x200mm
VESA: 100×100, 200×100, 200×200
Tilt: +3°~-10°
Swivel: +90°~-90°
Profile: 56-205mm (2.2"-8.1")

Περιεχομενα συσκευασιας:
βαση
βιδες
εργαλεια
user manual
